Full Servo CNC Router
Working Area
Machine Type
Linear Guideways
Rack & Pinion
Gearbox
Z-Axis Drive
Motor & Drive
Controller
Spindle
Work Table
Lubrication
Machine Structure
Power Supply
Overall Machine Size
1300 × 2500 × 300 mm (4 × 8 ft)
3 Axis CNC Router – Single Head
25 mm HIWIN (Taiwan)
25 mm Helical YYC (Taiwan)
Japanese Precision Planetary Gearbox
25 mm German Ball Screw with Servo Motor & Brake
YAKOTECH ASS3 System (X, Y & Z)
Richauto A11
6 kW HQD Air-Cooled 18,000 RPM
Manual Clamping T-Slot Table
Automatic Oil Lubrication System
Heavy-Duty Rigid Steel Body (Vibration-Free)
Single Phase & Three Phase
Approx. 10 × 7 ft
Description

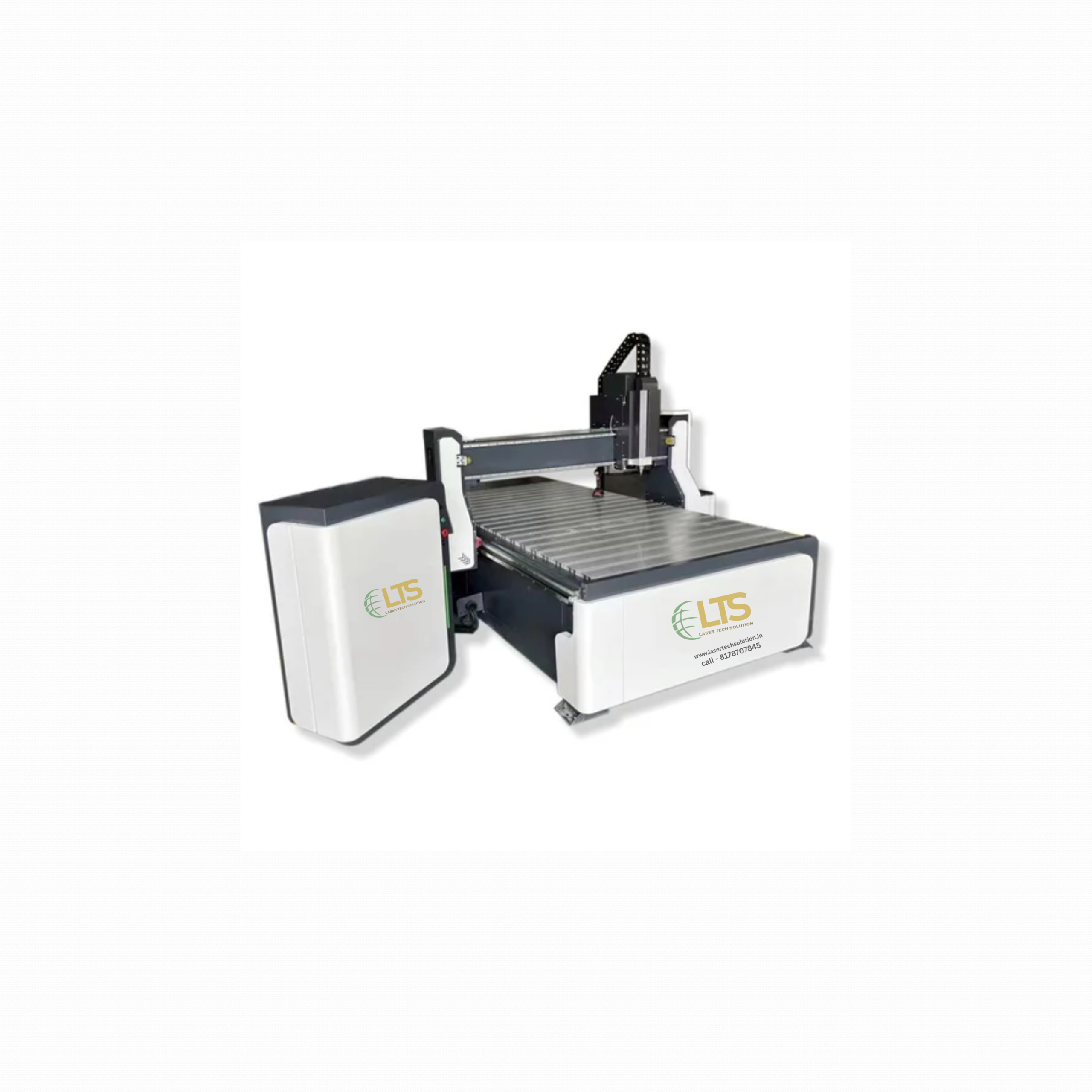

The Heavy Duty Full Servo CNC Router 1325 – Single Head is designed for high-precision, continuous industrial production. Built with premium Taiwan, Japanese, and German components, this machine delivers smooth motion, excellent accuracy, and long-term reliability.
Equipped with a 6 kW HQD air-cooled spindle and a full servo drive system, it ensures fast cutting speed, clean finishing, and stable performance even during heavy-duty operations. The rigid steel body and automatic lubrication system make it ideal for furniture manufacturing, interior work, door production, signage, and wood-based industries.
