Hybrid Servo Easy Servo
CNC Router
Working Area
Machine Type
Linear Rail & Block
Rack & Pinion
Gearbox
Z-Axis Drive
Motor & Drive
Controller
Spindle Motor
Work Table
Lubrication System
Machine Structure
Power Supply
Overall Machine Size
1300 × 2500 × 300 mm (4 × 8 ft)
3 Axis CNC Router
25 mm HIWIN (Taiwan)
25 mm Helical YYC (Taiwan)
Japanese Precision Planetary Gearbox
25 mm German Ball Screw with Servo Motor & Brake
YAKOTECH MSS3 Hybrid Servo System
Richauto A11E
6 kW HQD Air-Cooled (18,000 RPM)
Manual Clamping T-Slot Table
Automatic Oil Lubrication Pump
Rigid Steel Body for Stable & Vibration-Free Operation
Single Phase
Approx. 10 × 7 ft
Description
The Hybrid Servo CNC Router 1325 is designed for workshops and manufacturers who need better speed, higher accuracy, and improved reliability compared to standard stepper-based machines.
Equipped with a YAKOTECH hybrid servo system and a 6 kW HQD air-cooled spindle, this machine delivers smooth motion, faster cutting, and clean finishing across a wide range of materials including wood, MDF, acrylic, plastic, and signage boards.
Its robust steel structure, premium motion components, and automatic lubrication system ensure long-term performance with low maintenance—making it a smart and cost-effective choice for furniture manufacturing, interior work, and production units.

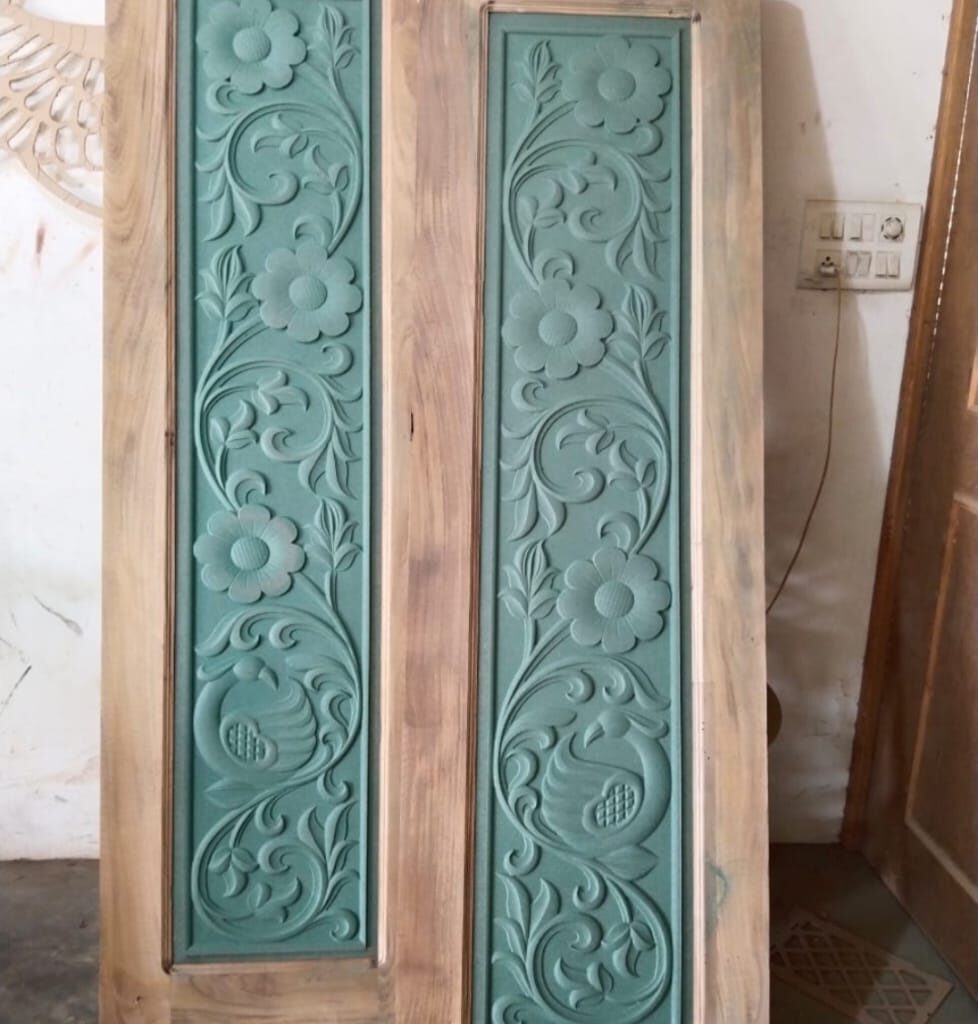

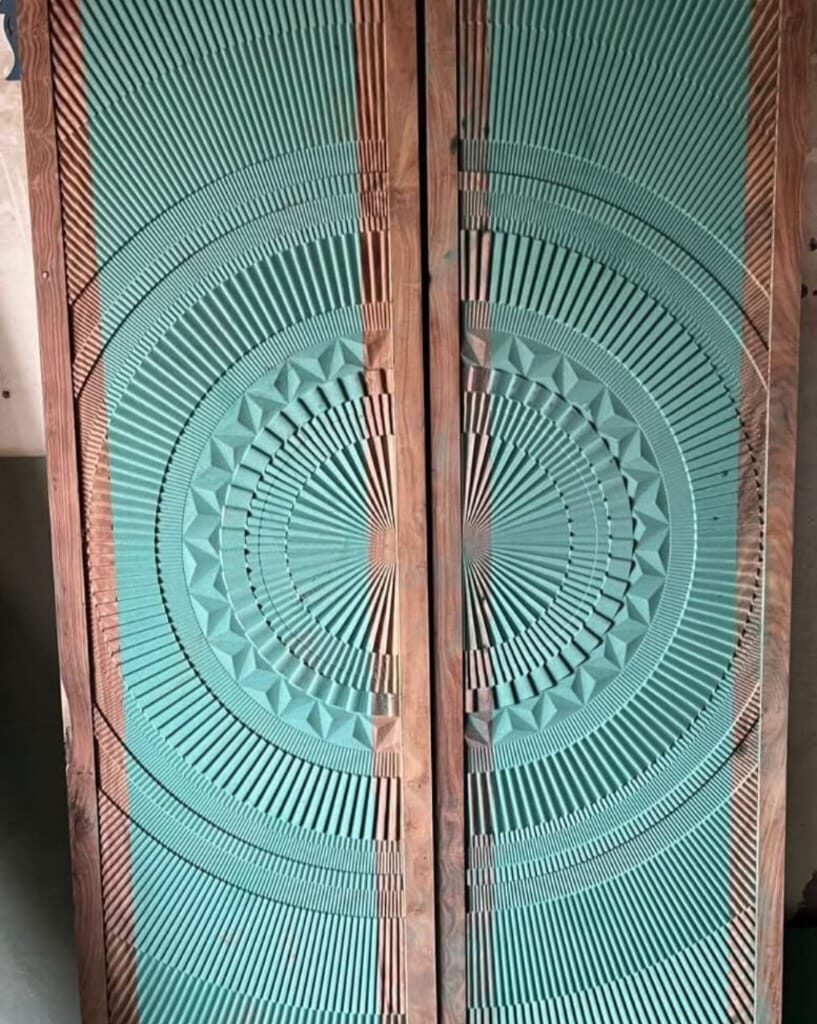

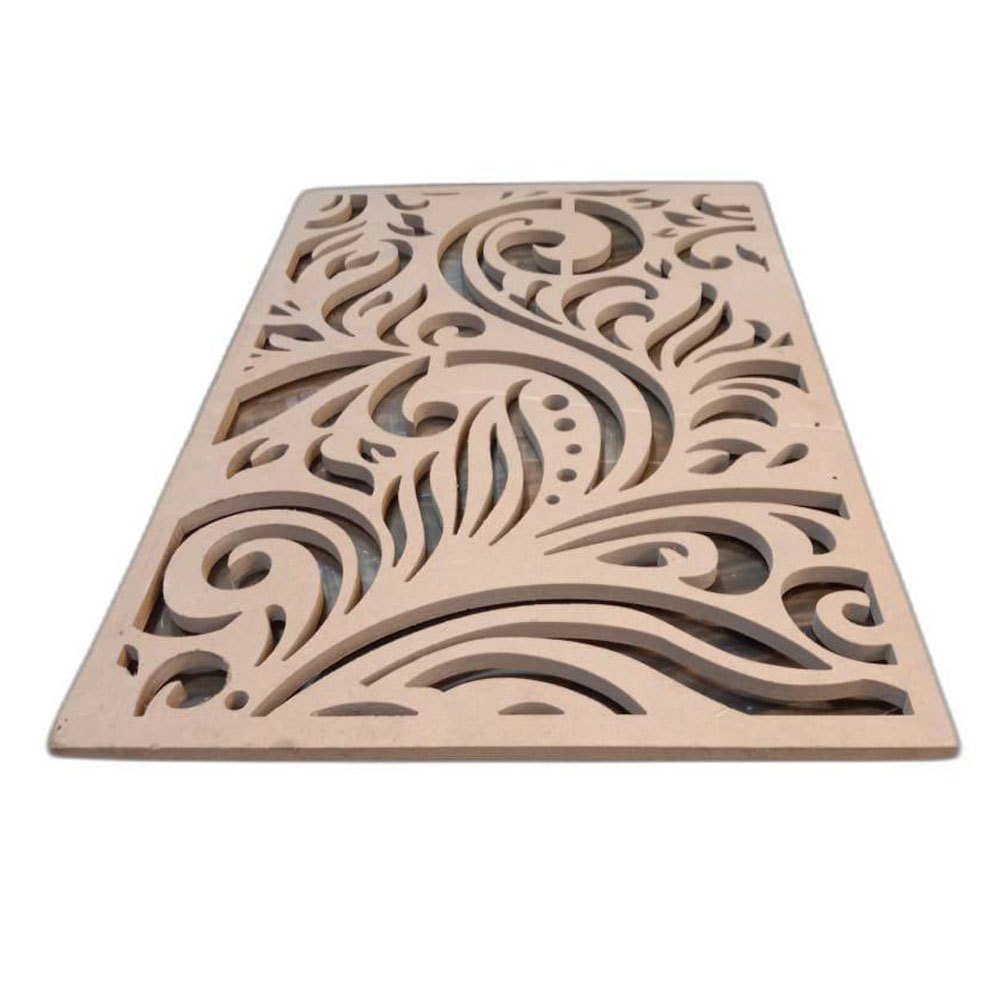

Sample Gallery
